AT KTECH ADDICTION TO BITUMEN INNOVATION NEVER ENDS
ISO 9001 - 200 R Certified Company
HIGHLY MICRONISED BITUMEN EMULSION TO GIVE YOU THE EXTRA DISTANCE PRODUCED TO THE MOST ADVANCED BWS-GERMAN TECHNOLOGY
KTECH promote new technology to encourage the usage of cold mix to reduce carbon emmisions and encourage eco friendly con-struction. promote new technology to encourage the usage of cold mix to reduce carbon emmisions and encourage eco friendly construction.
Advantages:-
>> No Heating is required.
>> Environmental Friendly,
>> Workable in all climate conditions
>> Cost Effective
KTECH bitumen is available in following viscosity grades (VG),
meeting 1S73 : 2013 Indian standard paving.
Bitumen Available Grades:-
>> KTECH Bitumen VG-30
>> KTECH Bitumen VG-40
Availability:
Bulk, 200kg MS Drums
KTECH modified bitumen as per IRC:SP:53 -2002 and IS 15462:2004
Crumb Rubber Modified Bitumen (CRMB):
CRMB can be used for wearing courses at heavy trafficked roads busy
intersections, bridge decks and round about for increased life of the surfing.
Available Grades:
>> KTECH CRMB - 50
>> KTECH CRMB - 55
>> KTECH CRMB - 60
Polymer Modified Bitumen (PMB):
PMB can be used in bitumen mix designs which result in the manufacture of cohesive bitumen mix with good elastic-ity having durable surface characteristics, Excellent anti-stripping properties. High cohesivencess, High stiffness modulus leading to greater resistance to permanent defor-mation and reflective cracks. Available Grades:
>> KTECH PMB - 40
>> KTECH PMB - 70
>> KTECH PMB – 120
Availability :Bulk, Site Blending
KTECH BITUMEN EMULSION
GRADES OF CATIONIC BITUMEN EMULSION
As Per BIS:8887:2004
>> Cationic Rapid Setting-1(CRS-1)
>> Cationic Rapid Setting-2(CRS-2)
>> Cationic Medium Setting(CMS)
>> Cationic Slow Setting-1 (CSS-1)
>> Cationic Slow Setting-2 (CSS-2)
As PerASTM D2397-05
>> CRS-1 ,CRS-2
>> CMS-2>> CSS- 1H
>> CSS-1ASTM
Uses of Emulsion
>> Road construction and maintenance.
>> Prime coat and tack coat application.
>> Surface dressing work.
>> Road mix aggregate
>> Can be used in other application
>> Such as fog seal, crack seal etc,.Bitumen

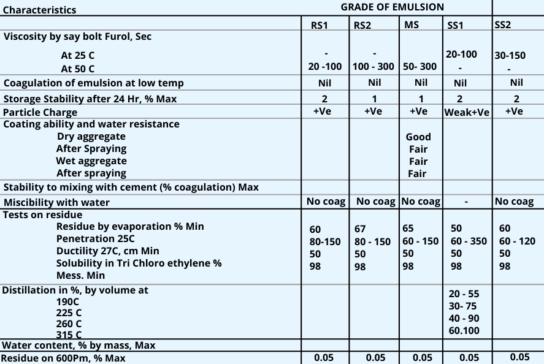

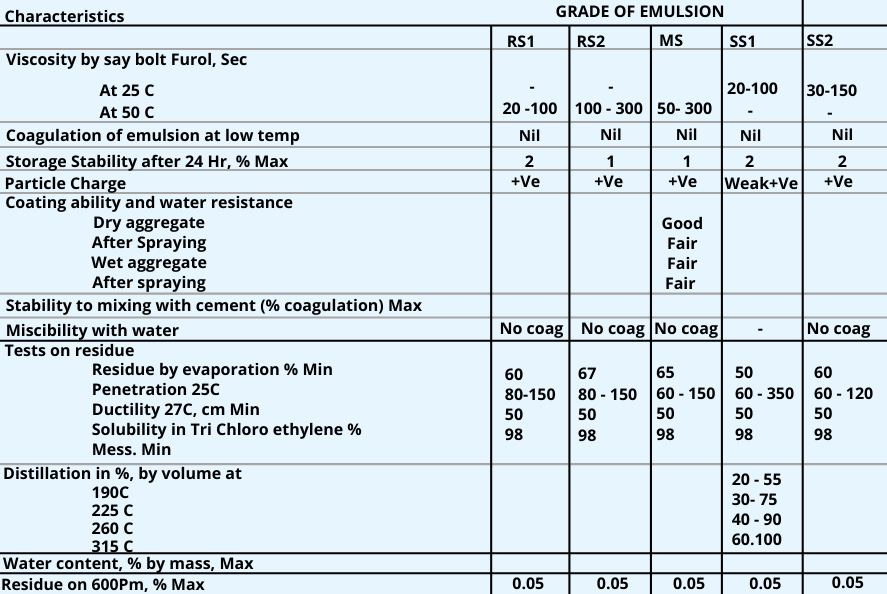

Specification of Cationic Bitumen Emulsion as IS:8887:2004:

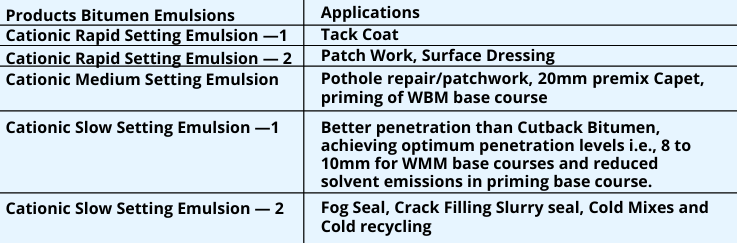

Application of Bitumen Emulsion:
Cationic Rapid Setting -l(Tack Coat):
Tack Coat is a very light spray application of diluted bitumen emulsion to create a bond between an bitumen overlay being placed and the existing surface.
The functions performed by Tack Coat are
>> It is essential for good patching operation
>> To avoid skidding of top layer from bottom layer
>> To add strength to both the layers as it makes both
layers act as one.
Cationic Rapid Setting-2 (Surface Dressing):
Four types of surface dressing are commonly adopted using Bituminous emulsions, they are :
>> Single layer surface dressing
>> Racked in surface dressing
>> Double layer surface dressing
>> Sandwich surface dressing
The various techniques are explained in the picture beside
Cationic Medium Setting (Maintenance):
Changing weather conditions and heavy traffic deteriorate the quality of Bituminous pavements, hence it is necessary to ensure pavement upkeep in order to maintain good traffic, safety and comfort conditions for users. Commonly used maintenance tech-niques are
>> Patching >> Surface Dressings
>> Slurry Seal >> Cold Mix Concrete
Patchwork is the most technique adopted for maintenance in our country.
Patching is a technique used for :
>> Pothholes >> Hollows
>> Surface damage >> Cracks etc..
Cationic Slow Setting - 1 (Prime Coat):
Prime coat typically is application of low viscosity bitumen over a granular base, preparing it for laying an bitumen mixture on it. A prime coat performs several important functions.
>> Coats and bonds loose material particles on the surface of the base.
>> Hardens or toughens the surface of the base.
>> Waterproofs the surface of the base by plugging capillary or interconnected voids.
>> Provides adhesion or bond between the base and the bitumen mixture.
Specially designed emulsion for prime coat. Suitable for slurry seal, premix seal coat and fog spray. Application of Bitumen Emulsion SS-2 to an absorptive surface,
designed to penetrate, bond and stabilize this existing surface.
